UNISON RESEARCH UNICO UPHONO+ PHONO PRE-AMPLIFIER
£1,099.00

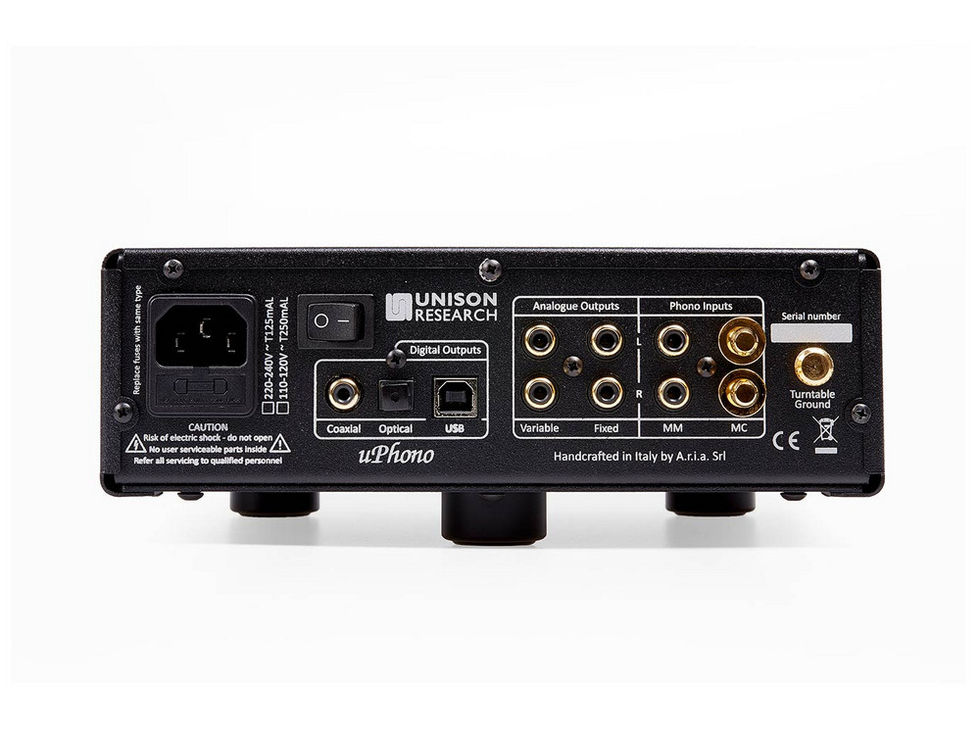

The UNISON RESEARCH uPHONO+ Phono is a pretty unique phono Pre-Amplifier. It caters for both Moving Magnet and Moving Coil cartridge types, offering both fixed and variable analogue RCA outputs. Digital coaxial, optical, and USB outputs can connect digitally to a DAC or system, and it even offers a 6.3mm headphone jack for private listening.
Available in black or silver finishes.
Quantity
PRODUCT INFORMATION
The UPhono+ Phono Stage is designed for the best possible sound quality with audiophiles in mind.
MM & MC Inputs
MM and MC inputs, fixed variable output options as well as digital outputs.
High-Resolution A/D Conversion, Processing and More!
The UPhono+ Phono Stage has been designed with high-res A/D conversion, processing, three digital outputs and a high-current headphone stage.
The uPhono+ is available in two finishes - black or silver.
SPECIFICATIONS
- Analogic moving magnet input (MM) /High output moving coil (MC)
- Low and ultra low moving coil
- Fixed analogue output
- Variable analogue output
- Headphones (16-600Ω): ¼ inch (6.35mm) stereo jack socket
- Type B USB Digital port for pc connection (up to 24 bit / 96 kHz)
- Digital Optic transmission
- Digital Coaxial transmission
- Input impedance MM 47kΩ + 100/200/320 / 420pF
- MC 20/50/100/150/250/500 / 1kΩ + 1nF
- Gain 1 kHz MM 38 dB MC 58dB / 69dB selectable
- Nominal output level 316mVRMS (-10dBV)
- Input sensitivity for nominal output level MM 3.36mVRMS MC (58dB) 0,336mVRMS
- MC (69dB) 0.1mVRMS
- Signal/Noise Ratio MM -80dB MC (58dB) -64dB MC (69dB) -60dB
- RIAA curve accuracy +/- 0.3dB from 20Hz to 30kHz
- IEC anti-rumble filter -3dB at 20Hz and 6dB/octave
- Overload margin (headroom) 30dB
- THD+N at 1kHz MM 0.018% (10mVRMS in) MC (58dB) 0.12% (1mVRMS in) MC (69dB) 0.12% (1mVRMS in)
- Line output impedance Fixed 824Ω Variable 824Ω
- Headphone stage Output level 2.18VRMS Max THD+N 0.07% (1kHz /32Ω)
- USB A/D Resolution 16/24 bit Sample rates 8, 16, 32, 44.1, 48, 88.2, 96kHz
- Coaxial digital output 0.5Vp-p a 75Ω / 96kHz max.
- Mains voltage 220-240V AC or 100-120V AC according to the country of use
- Power 6.6W
- Dimensions (H x W x D) 82.5 x 216mm x 251mm (3.25 x 8.5 x 9.9 inches) including feet, connectors and knobs
- Weight 2.6Kg (lbs)
