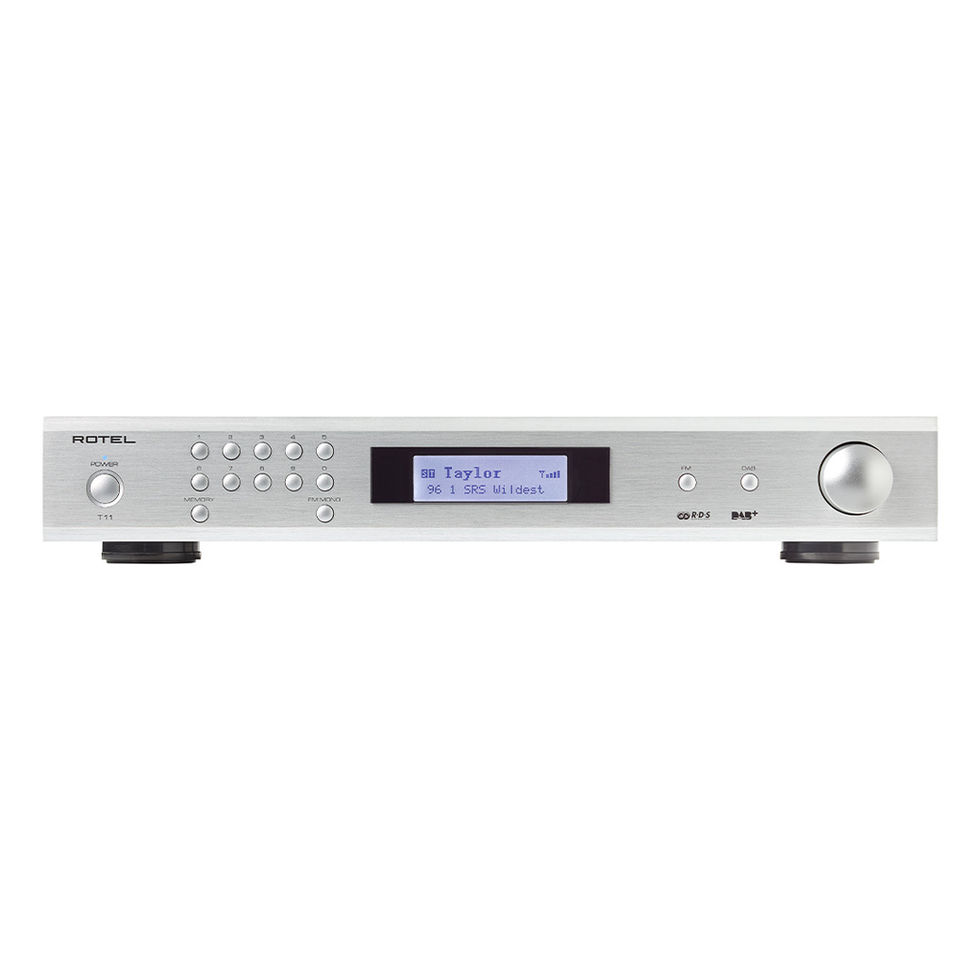

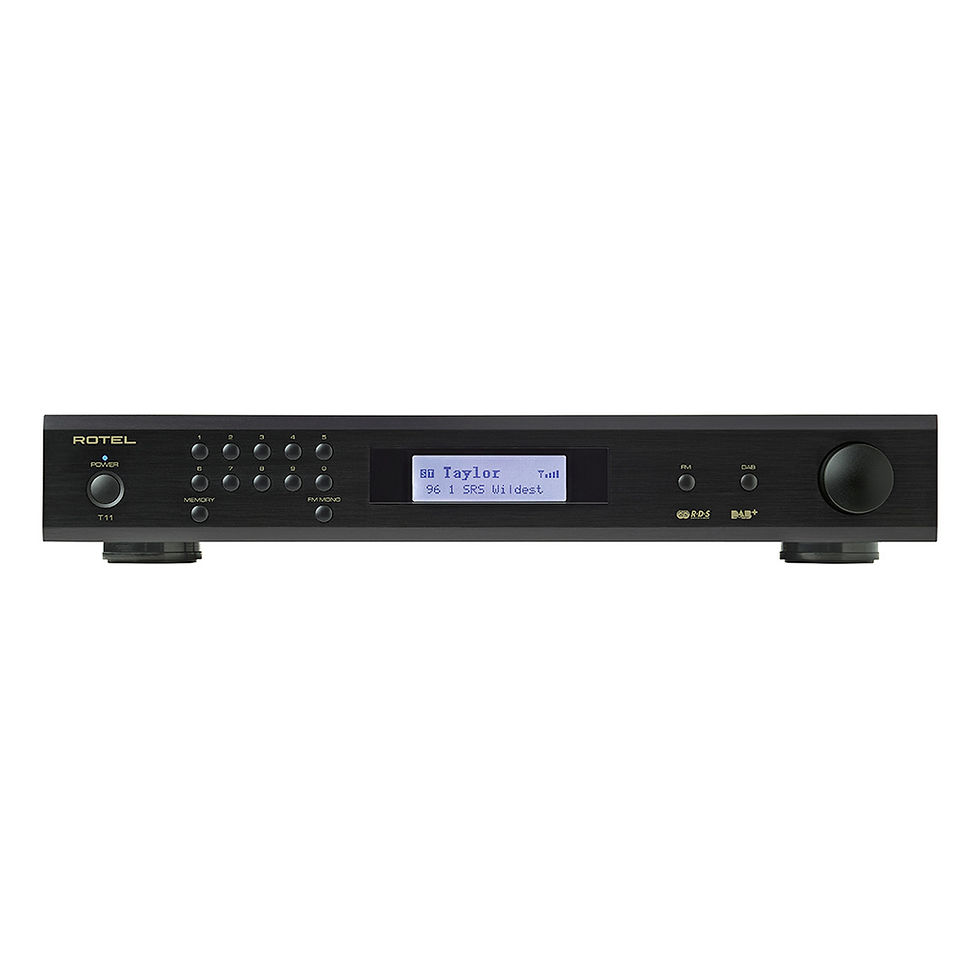

ROTEL T11 DAB/FM TUNER

Rotel has been producing quality tuners since the 1960s. One of the latest additions to this long-established line-up is the T11 FM/DAB+ tuner. It provides a wealth of listening options with easy access to classic analogue FM stations as well as newer DAB+ (Digital Audio Broadcasting) services.

Like the T14, T11 features the ability to easily store and recall up to 30 presets each for FM or DAB+ stations. A further useful feature common to all 14 Series products is the ability to dim the display panel and power LED to provide a comfortable visual reference in all lighting environments.

DAB Sensitivity:  -80dBm

DAB Tuning Range:  Band III (174-240MHz)

DAB Audio Date Rate:  224Kbps Max

DAB Frequency Response:  20Hz - 20kHz ±1dB

DAB Analog Output:  2.1V at 0dBfs

DAB Antenna Input:  75Ω F Connector

FM Usable Sensitivity:  22.2dBf

FM 50dB Quieting Sensitivity:  27.2dBf (Mono)

FM Signal to Noise Ratio (at 65dBf)

63dBf (Mono)

60dBf (Stereo)

FM Harmonic Distortion (at 65dBf)

0.2% (Mono)

0.3% (Stereo)

FM Frequency Response:  10Hz - 15kHz ±3dB

FM Stereo Separation (100Hz/1kHz):  40dB/37dB

FM Output Level:  1V

FM Antenna Input:  75Ω F Connector

Dimensions (W × H × D)

430 × 73 × 330mm 17" × 2.9" × 13"

Front Panel Height:  60mm (2.36")

Power Requirements:  230V, 50Hz

Power Consumption:  10W

Standby Power Consumption:  <0.5W

Net Weight:  4.3kg (9lbs.)

 This item will usually ship within 1-2 working days.
