PERLISTEN R SERIES 2.1 MEDIA WALL PACKAGE

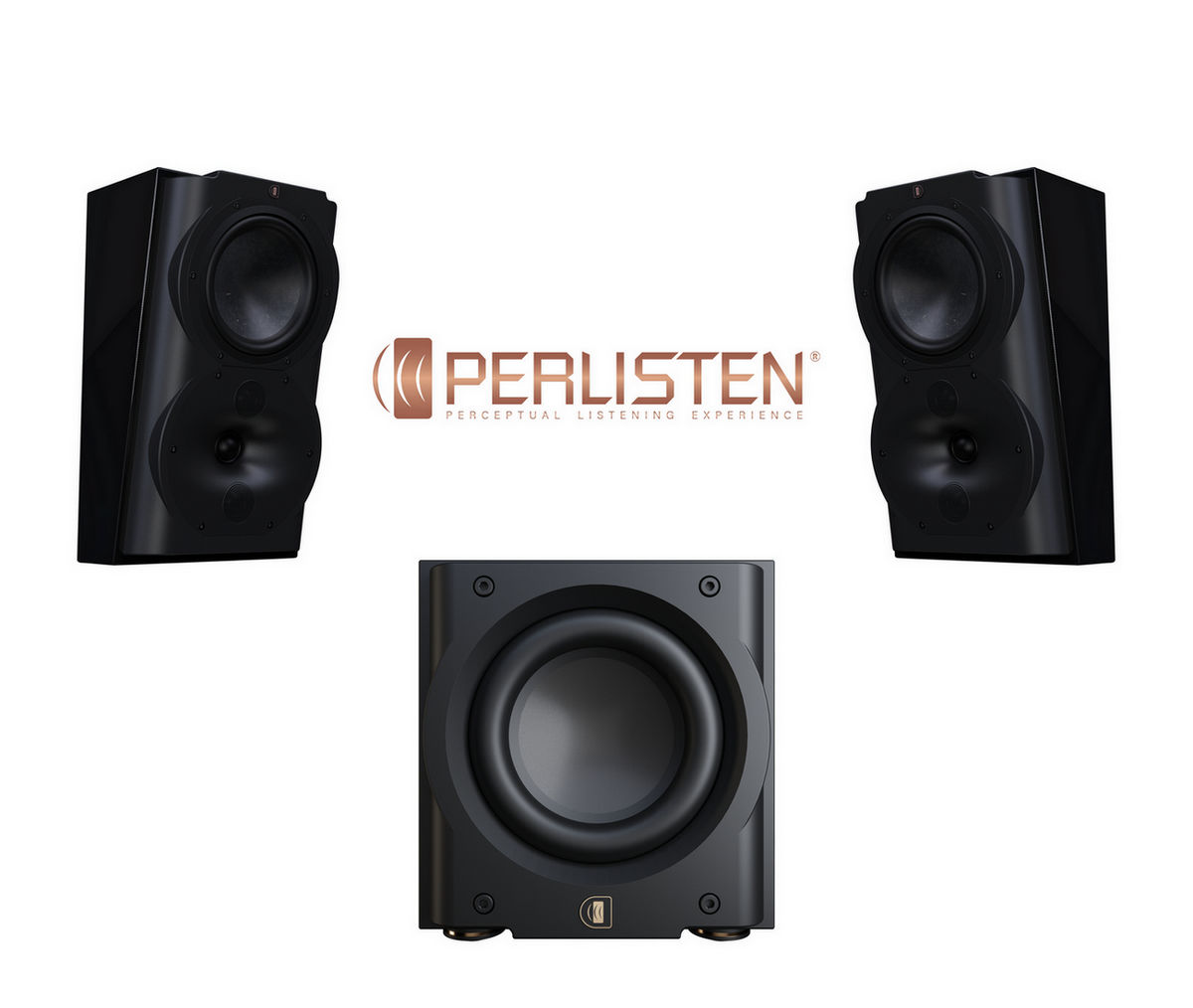

PERLISTEN R SERIES MEDIA WALL PACKAGE
The three-way, wall-mount Perlisten R4s speakers provide a highly detailed presentation ideal for music and movies. The DPC waveguide ensures a controlled, even, in-room dispersion of high frequencies.
The R8s subwoofer fills in with taut, powerful bass, underpinning the R4s speakers perfectly.
The package offers an extremely high quality, in-room 2.1 solution for music and movies.
R4s SURROUND
The R4s angled on-wall surround is the final piece to any great system with the same R-series DPC array to offer real timbre matching on every part of your PERLISTEN Home Theatre. We take Timbre matching to another level and no sacrifices are made just because it’s a surround, we care, and know you do too. Not only are the same materials used but the same response targets for on and off axis response that the R-series and S-series speakers uphold are used because you deserve it. Flush mount on wall bracket is included and optional tilt and swivel bracket is available.
Experience Unmatched Sound Quality
Our R-Series products are available in a single, carefully selected High Gloss Black finish that complements most home interior designs. Enjoy the timeless design with exceptional performance, all in one stunning finish.
It's all in the details
Designed to be mounted with integral keyhole, optional tilt/swivel bracket, or mounted behind screens. Sharing “trickle-down” technology from our flagship S-Series, the DPC-Array here based on three 26mm domes, guarantees excellent directivity control and timbre matching with all R-Series speakers. The Silk diaphragms developed ground up, chosen specifically their smooth, effortless representation of midrange and treble. The 165mm woofer is made from our proprietary HPF pulp, two years in development, bringing new technology to one of the oldest materials used in loudspeaker design. Optimized for smooth power response (2pi or 4pi) the R4s is designed to work well as part of a larger R-series system, versatile enough to be used as any channel.
Perlisten Ultra Compact R8s Subwoofer. Unmatched Power and Precision
Experience a new level of bass with the Perlisten Audio R8s Subwoofer. To-date our most compact subwoofer, where cutting-edge technology meets exceptional performance.
Tiny frame mighty bass
R-Series subs – Trickle down technology from our flagship D-Series, we’ve developed a lineup of single driver-based subwoofers. Ground up drivers developed by our team of engineers. Glass fibre composite diaphragms, multiple aluminium shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminium voice coil wire are the key ingredients – Proprietary nonlinear modelling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of our Klippel laser measurement system to dial things in. Powered by our new 500W amplifier to match the new designed 8” driver, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy. All R-Series subs share our 2.4” LCD touchscreen display and ability to control advanced settings using our App.
Enclosure alignment
3-way acoustic suspension
Driver compliment
DPC-Array: 26mm(3) Silk dome Woofers: 165mm HPF diaphragm
Sensitivity
86.5dB / 2.83v / 1.0m
Impedance
4Ω nominal / 3.7Ω min
Response Linearity
300 - 20kHz +/-1.5dB window
Frequency Response (-10dB)
48 - 32kHz
Typical In Room bass extension
42Hz
Dimensions (HxWxD)
378 x 230 x 173mm 14.9 x 9.0 x 6.8"
Weight
9.5 kg (20.9 lbs.)
Recommended Amplifier Power
50 - 200W RMS
SPL capability @1m (100-20kHz)
109.5dB peak <3% - 2nd, 3rd Harmonics
Certification
THX Ultra
Available finishes
Piano black, Gloss white
Alignment
Acoustic suspension
Amplifier
500W rms
Display Interface
2.4" LCD color touchscreen
App
iOS and Android
Processor
32-bit ARM Cortex M4, double precision floating point math
DSP Engine
Ti DSP 48-bit data paths
Driver compliment
215mm, Glass fiber diaprhragm +/-28.0mm linear excursion
Reference sensitivity
86dB /150mV/ 1.0m
Frequency Response THX EQ Boost (Large Room) EQ Cut (Small Room) EQ
20-265Hz (-6dB) / 16-330Hz (-10dB) 16-265Hz (-6dB) / 14-330Hz (-10dB) 25-265Hz (-6dB) / 19-330Hz (-10dB)
Inputs
(1) Balanced XLR (1) Unbalanced RCA
Outputs
(1) Balanced XLR unbuffered (1) Unbalanced RCA unbuffered
Parametric EQ
10-Band PEQ with 3 user presets
Low Pass filter
bypass, 30-160Hz, slope 6,12,18,24dB/oct
Phase
Variable 0-270
Polarity
Normal / inverted
Configurable Auto turn-on and 12v Trigger
XLR, RCA
Dimensions (HxWxD)
298 x 270 x 290mm 11.7 x 10.6x11.4"
Weight
14.4 kg (31.7 lbs.)
Available finishes
Satin black and Satin white
