MISSION 778X AMP / LX2 SPEAKER HIFI PACKAGE
This MISSION 778X amp / LX2 speaker package is an ideal compact starter system, providing 45wpc, Bluetooth streaming, along with digital and analogue inputs (including an MM phono stage) to plug in external sources such as a music streamers, games consoles, media boxes, or even your TV.
The LX2 speakers are available in Lux White, Lux Black, and Walnut Pearl finishes.
The 778X amplifier is available in Black or Silver finishes.

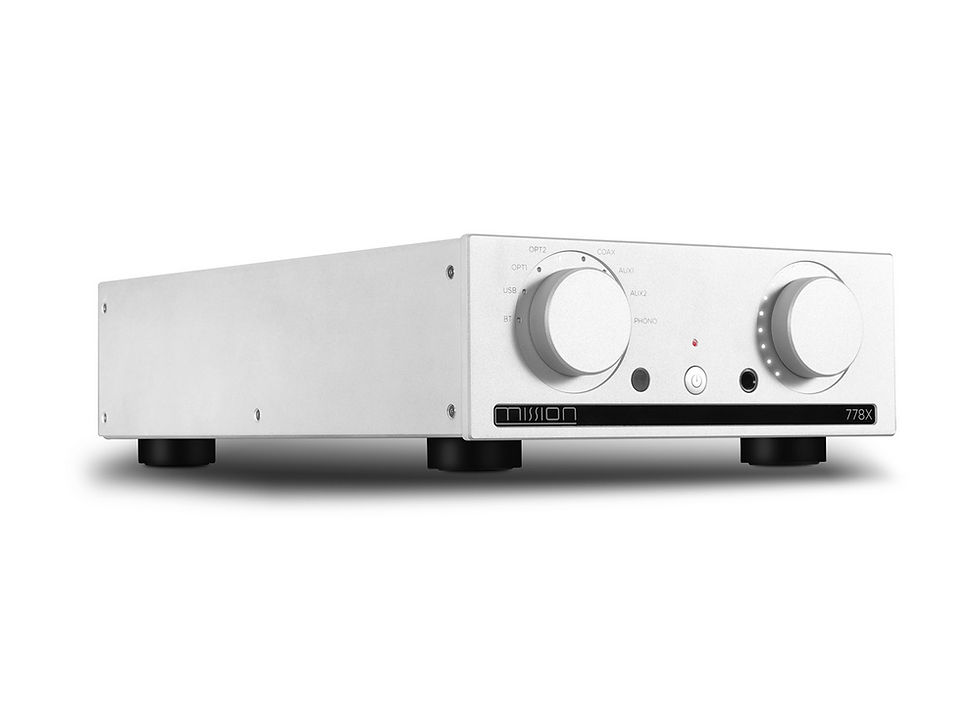

MISSION 778X AMPLIFIER
Over the past 45 years, Mission has become famed for loudspeakers that break the norms of price-point, technology and design. Yet, in its illustrious history, Mission was also responsible for some equally prolific hi-fi electronics.
Thus, the Mission 778X is a revisit of a classic Mission amplifier concept that was the Mission 778 – an affordable integrated amplifier that offered simplicity in operation but over-performed in the driving of loudspeakers.
Today’s Mission 778X maintains the influence of simplistic operation, large tractile controls, and a multitude of inputs. It’s a compact, ’80s inspired integrated amplifier that is fully equipped to meet the demands of modern music lovers, from vinyl fans to digital streamers. Modern twists, such as LED level indicators and all-encompassing connectivity options, make the 778X a truly contemporary integrated amplifier. Boasting a genuine 65 watts (@4 ohms) of power via an utterly modern and refined signal path, to standards akin to the exemplary standards to which Mission loudspeakers are developed.
The phono stage is based around a JFET-based circuit with precise RIAA equalisation. It’s optimised for MM cartridges and as such, it’s a high-quality, low-noise input that eliminates any need for an additional phono pre-amp.
Complementing the typical RCA line inputs are digital and coax connection options and a built-in Bluetooth receiver with an aptX and AAC codec, meaning the 778X offers CD performance via Bluetooth wireless connection. The convenience of streaming music from smart devices, such as phones, tablets or PCs have never sounded so good!
That’s not all in terms of digital music facilitation. The 778X is also equipped with a high-performance ESS ES9018K2M Reference chip with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator. In the world of digital music files, this means the 778X offers class-leading, ultra-low noise digital audio file compatibility, with a sampling rate of up to 384kHz (PCM) and DSD256!
Equal in performance to standalone headphone amplifiers, beyond the price- class of this complete system, the design offers high-speed output signal transition thanks to a high slew rate. The result is a dynamic, detailed and engaging performance with all manner of headphone types.
LX2 Mk2 LOUDSPEAKERS
LX-2 MKII is a 2-way standmount loudspeaker with a 5″ bass driver and a 1″ soft dome treble unit.
The LX MKII Series is the latest in a long line of distinguished Mission loudspeakers, joining the multi-award winning speakers from the mid-level QX Series and the flagship ZX Series. LX MKII maintains the Mission trademark ‘Inverted Driver Geometry’ design, which means the path length between the drivers is optimised. Unique at this price-point, this arrangement allows the precision-tuned crossover to yield improved transient attack and astonishing detail.
Perfected over hundreds of hours of critical listening by Mission’s lead acoustic designer, Peter Comeau, Mission LX MKII utilises trickle-down innovations from the revered ZX series. Improvements in the famous Mission DiaDrive bass unit offer superior control of the low-frequency diaphragm while a refined high-frequency performance and a re-engineered cabinet bracing system further help create a loudspeaker system that outperforms its price-class.
One of the critical areas highlighted by the development of Mission ZX and QX models was the use of serrations in the driver surrounds to help scatter interfering reflections from localised surfaces to the dome and cone
LX MKII now incorporates these serrations into the driver surrounds, adding further finesse to the drive unit outputs and providing a smoother frequency response
With minor perturbations in the driver response ironed out, the crossover for each model has been optimised to take advantage of the improved performance
The result is that the LX MKII builds on the winning formula of the LX, both enhancing the clarity of
midrange and treble detail and improving the micro-dynamics of the musical performance for an even more thrilling listener experience.Mission’s classic IDG (Inverted Driver Geometry) driver format positions the high frequency below the bass / midrange driver meaning the length of path is equalised so the sound waves coincide at the listener’s head height. A proprietary principle that improves ‘time alignment’ and thus transient performance in Mission speakers.
778X AMPLIFIER Digital-to-Analogue Converter, Stereo Amplifier Design Philosophy and Core Technology • Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
• ESS Sabre32 ES9018K2M Reference Chip
• Ultra-low Noise Digital Audio File Compatibility (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
• Dedicated High-performance, Low-noise MM Phono Stage
• Headphone AMP With High-speed Output Signal Transition
• USB Upgrade Support
• Large Tractile Controls With LED Level IndicatorsInputs 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
2 x AUX,1 x RCA (Phono MM)Outputs 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out) Sampling Frequency Optical / Coaxial: 44.1kHz-192kHz;
PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256Preamplifier Section Gain (max.) +0dB (Line), +47dB (Phono MM) Input Sensitivity 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB) Input Impedance 10K (AUX); 47K//100pF (Phono MM) Total Harmonic Distortion (THD) <0.003% Frequency Response (ref. 1kHz) 20Hz-20kHz (±0.1dB) PRE Output Level 2.1Vrms (max.) PRE Output SNR >110dB (A-weighted) DAC D to A Converter ESS Sabre32 ES9018K2M Resolution 32-bit Max. Sampling Frequency Optical/Coaxial: 192kHz; USB: PCM 384kHz / 11.2896MHz (DSD256) Total Harmonic Distortion (THD) < 0.001% (1KHz @ 0dBFS) Output level (0dBFS, 1KHz) 2.1Vrms Power Amplifier Section Gain +31dB Rated Power Output 2x45W(@8ohms); 2 x 65W (@ 4 ohms) Frequency Response (ref. 1kHz) 20Hz-20KHz (± 0.5dB) Total Harmonic Distortion (THD) <0.005% (30W / 8 ohms) Input Sensitivity 540mV (RCA AUX In); 2.5mV (Phono MM) Signal-to-Noise Ratio (SNR) >108dB (ref. 45W, A-weighted) Crosstalk @1K >80dB (ref.1W) Standby Power Consumption <0.5W Headphone Amplifier Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW ) Output Impedance 4.7 ohms Load impedance 20-600 ohms General Dimensions (mm) (W x H x D) 236x98x380.6 Carton Size (mm) ( W X H X D) 450x392x175 Net Weight 6.3kg Finish Black / Silver Power requirements (depending on region) 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz Standard Accessories Power Cord, Remote Control, User Manual, Antenna General description 2-way bookshelf speaker Enclosure type bass reflex Transducer complement 2-way Bass driver 5"(130mm) composite fibre Treble driver 25mm microfibre dome AV shield No Sensitivity (2.83V @ 1m) 87dB Recommended amplifier power 20-100W Peak SPL 103dB Nominal impedance 8Ω Compatible Minimum impedance 3.8Ω Frequency response (+/-3dB) 55Hz ~ 20kHz Bass extension(-6dB) 50Hz Crossover frequency 3.2kHz Cabinet Volume (in litres) 8.5L Height (on plinth) 305mm Width 200mm Depth (with terminals) (250+8)mm Carton size 535 x 350 x 400mm Net weight 6.34kg/pcs Gross weight 14.4kg/ctn Finish Walnut Pearl / Lux White / Lux Black This item will usually ship within 2-3 working days.
We try and keep on top of our pricing, but it's a mammoth task for one person. So, if you see this product offered cheaper elsewhere, or you are offered it for less elsewhere (proof will be required) and you feel like supporting an extremely independent retailer, do get in touch and we will do our very best to match or beat wherever we can. We can't promise to do so, as there may some extenuating circumstances where we just wouldn't be able to, but we'll always do what we can.
Needs to be like for like - new for new, ex-demo for ex-demo, same colour and specs etc.
