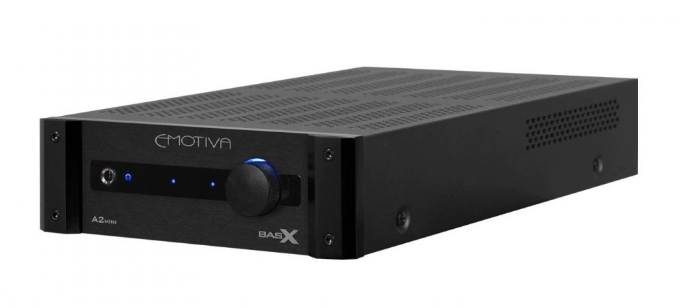

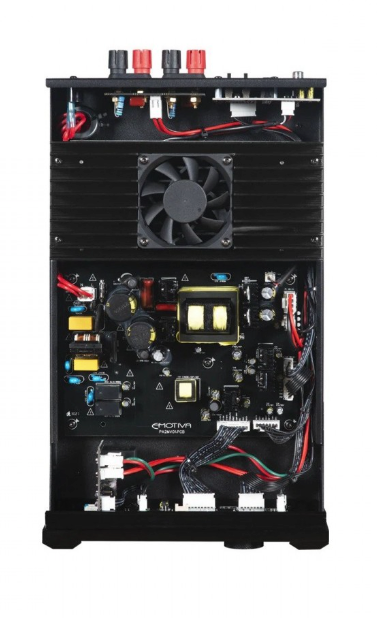

The BasX A2m is a two channel power amplifier that delivers 50 watts / channel into 8 Ohms, and 90 watts / channel into 4 Ohms, with a rated THD+N of < 0.1%, and an A-weighted S/N ratio of 112 dB. The BasX A2m features the same high-quality Class A/B amplification and full-sized five way speaker binding posts as our other BasX power amplifiers, but utilizes an advanced switch mode power supply, which contributes to its compact form factor and efficient power utilization.

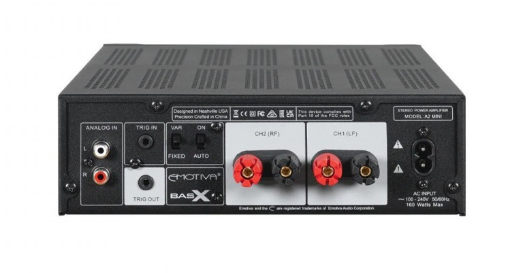

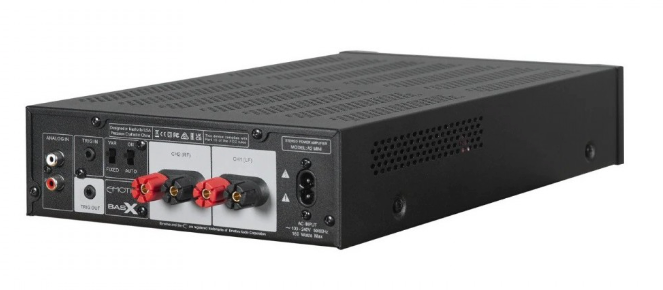

The A2m has several additional features that make it uniquely flexible. A rear-panel switch allows the A2m to be used either as a power amplifier, with a fixed gain, or as an integrated amplifier, with higher gain, and a convenient front panel Volume control. This allows the A2m to be used with a single line level stereo analog source without the need for a separate preamp. Another switch allows the A2m to be configured to turn on automatically when it detects either a standard Trigger input, or an incoming audio signal.

The front panel of the A2m includes a full-sized ¼” headphone jack driven by some very special headphone circuitry. Like the headphone outputs on highly-prized vintage gear, the headphone output on the A2m is powered directly from the main output amplifiers, through a pair of precision dropping resistors. This enables the A2m to power both regular low impedance headphones and demanding high impedance headphones with ease; a special internal jumper option allows you to route the main output power directly to the headphone output in order to drive low impedance planar headphones.

• 50 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms
• 90 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms
• Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.07 dB)
• Broad Band Frequency Response: 10 Hz to 80 kHz +0/-1.8 dB
• THD + noise: < 0.02% (A-weighted); ref rated power
• Signal to Noise Ratio (8 Ohm load): > 112 dB; ref rated power; (A-weighted)
• Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)
• Damping Factor (8 Ohm load): > 500
• Input Sensitivity and Gain (for rated power; 8 Ohm load) Fixed gain mode: 0.7 V / 29 dB, Variable gain mode: 0.5 V / up to 32 dB
• Input Impedance: 27 kOhms
• Dimensions: 8-1/4” wide x 3” high x 14-1/4” deep (not including connectors
• Weight: 7.5 lbs (unboxed) 10.5 lbs (boxed)
