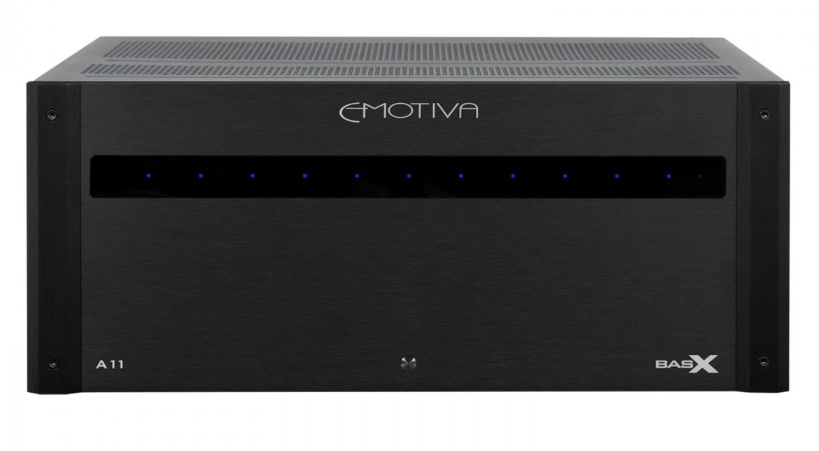

EMOTIVA BasX A11 11-CHANNEL POWER AMPLIFIER
The 105wpc EMOTIVA BasX A11 11-channel power amplifier provides eleven channels of amplification ideal for running an immersive 7.1.4 home theatre system, or to upgrade the power and quality of a lower powered AV receiver.
This item will usually ship within 1-3 working days.

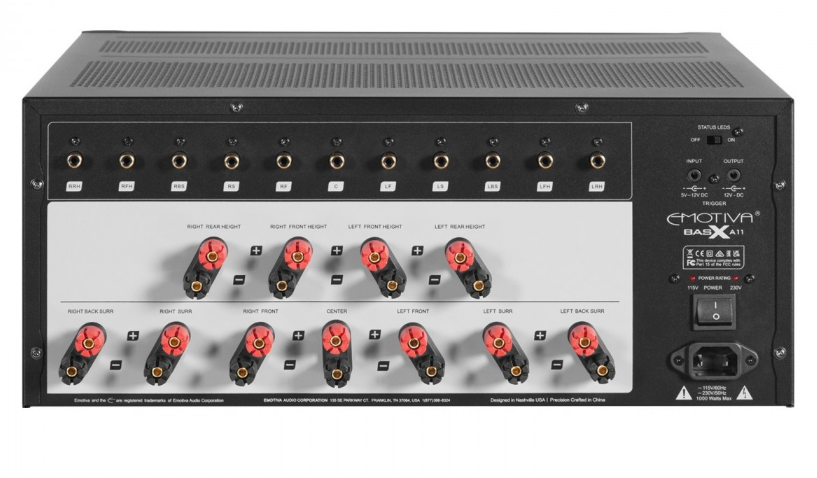

The amplifier exhibits an A-weighted signal-to-noise ratio of less than 115 dB. The BasX-A11 is equipped with a bunch of audio-grade features, including a robust linear power supply and Class A/B output stage, as well as transparent fault protection, and trigger input and output for full system integration. Its compatibility with almost any preamplifier or processor is ensured by the provision of industry-standard unbalanced RCA inputs. The BasX A11 is a great choice if you're looking for a high quality eleven channel amplifier to go with a processor in a new 7.1.4 channel surround sound system, or if you're looking for an easy way to upgrade the amps in your existing surround sound receiver.
300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven
550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven
300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven
490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven
Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB)
Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB
THD + noise: < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms.
Signal to Noise Ratio (8 Ohm load):
> 115 dB; ref FTC rated power; unbalanced input (A-weighted)
> 86 dB; ref 1 watt; unbalanced input (A-weighted)
Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)
Damping Factor (8 Ohm load): > 500
Input Sensitivity (for rated power; 8 Ohm load): 1.71
17” wide x 8” high x 19” deep (unboxed; including feet)
17” wide x 7” high x 19” deep (unboxed; without feet)
24-1/2” wide x 12” high x 24-3/4” deep (boxed
Weight:
53 lbs (unboxed)
58 lbs (boxed)
